〖產品名稱〗 |
productname |

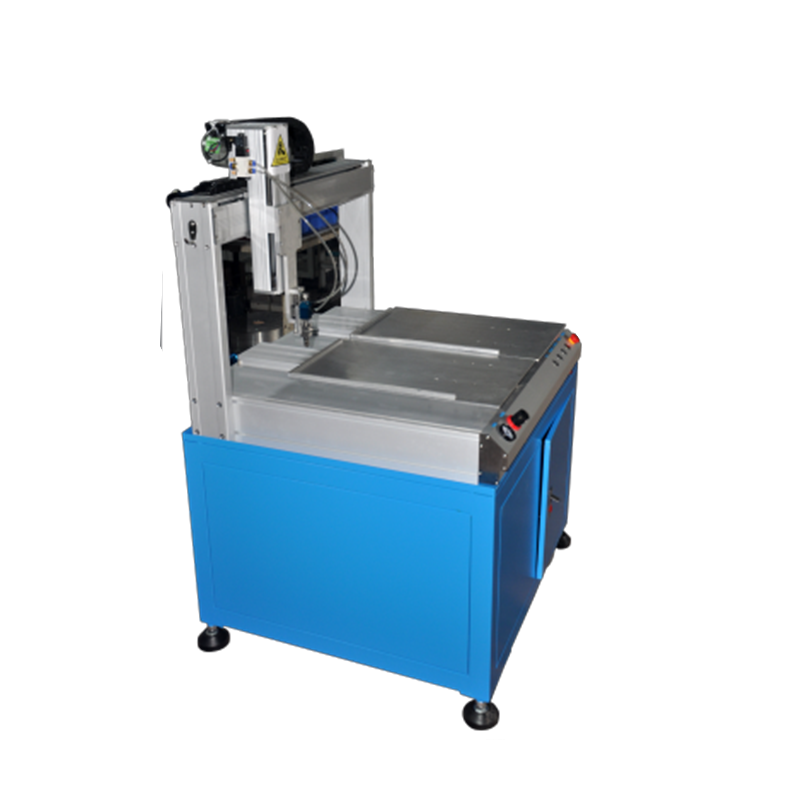

雙工位三軸劃膠機 Double station three-axis glues cribing machine |
|
〖型號〗 |
Type |
ZL-S088A |
|
〖功率〗 |
power |
700W |
|
〖電壓〗 |
Voltage |
220V |
|
〖外觀尺寸〗 |
physicaldimension |
860*800*1550MM |
|
〖工作尺寸〗 |
Working size |
480MM長*（320寬*2工作臺）*120高標準型 4800MMlong+(320MMwide*2 worktables)*120MM high standard |
|
〖工作速度〗 |
Working speed |
0.3M/S |
|
〖操作黏度〗 |
Operatingviscosity |
500-6000 CPS |
|
〖重量〗 |
Weight |
105KG |
|
〖適用膠水〗 |
Applicableglue |
萬能膠，白乳膠，熱熔膠（此設備可以加裝熱熔膠） Allpurpose adhesive ,white latex,hot meltadhesive(this equipment can be epuipped with hot melt adhesive) |
|
〖劃膠閥功能〗 |
Gunvalvefunction |
劃膠，涂膠，點膠，噴膠 Gluedrawing,Gluing,dispengsingandspraying |
|
〖出膠量〗 |
Amountofglue |
2MM--10MM |
|
〖膠桶壓力〗 |
Bucketpressure |
0.1-0.6Pa |
|
〖劃膠閥壓力〗 |
Gun valvepressure |
0.4-0.6Pa |
|
〖膠桶容積〗 |
Barrelvolume |
6L |
|
〖系統驅動〗 |
Systemdrive |
日本三菱64點輸入，輸出PLC操作系統+至尚四軸操作系統V8版 Mitsubishi64pointinputandoutput PLC control system+Zhishang four axis controlsystemV8version |
|
〖伺服〗 |
Servos |
杰美康58步進閉環馬達 Jiemeikang58 stepping closed-loop control motor |
|
〖模組〗 |
Module |
中國臺灣尚銀精工導軌 Taiwan Shangyin Seiko guide rail |
|
〖電源〗 |
Powersupply |
明緯電源48V，雙電源 Mingweipowersupply48V,dualpowersupply |
|
〖開關〗 |
Control switch |
原廠家正泰與歐姆龍開關 OriginalmanufacturerChintandOMRONswitch |
|
〖拖鏈線〗 |
Towline |
訊馳高柔拖鏈線，耐折100萬次 Xunchihigh flexible drag chain line with folding resistance of 1 million times |
|
〖劃膠閥〗 |
HotMelt System |
至尚公司品牌，有專利保護 Zhishangbrand ,with patent protection |
|
〖熱熔劃膠閥〗 |
HotMeltGunValve |
至尚公司品牌，有專利保護 Zhishangbrand ,with patent protection |
|
〖設備結構〗 |
Equipmentstructure |
至尚公司設計，專利申請，鋁合金機架，鈑金結構 Zhishang conpany design,patent application ,aluminum alloy frame,sheet metal structure
|
|
設備優勢 Epuipment advantages |
1.此設備可以平面劃膠，內底面劃膠，同時可以編輯多個不同文件。 Thisequipment can be glued on the plane and the inner bottom, and can edit multiple different files at the same time. |
|
2.劃膠嘴，劃膠閥為我司專利產品，設備變形，異形，高低不平，都可以很好的生產。劃膠嘴防撞，防變形。 Gunnozzleandgunvalve are our patented products.The epuipment is deformed ,deformed and uneven,which can be producedwell.Thegunmouthisanti-collisonandantideformation |
|
|
3.適用產品:紙盒，膠盒，木盒，海棉，EVA，珍珠棉等。 Applicableproducts:carton,plastic box,wooden box,spong,EVA,pearl cotton,etc |
|
|
4.操作簡單，系統可記錄200個文件，翻單時只有調出文件即可。 Theoperationis simple.The system can record 200 files.When turning a document,only the file can be called out |
|
|
5.劃膠嘴，終身以舊換新，保修保換。 Thegun nozzle is replaced with the old one for life ,with warranty. |
|
〖產品名稱〗 |
productname |
雙工位三軸劃膠機 Double station three-axis glues cribing machine |
|
〖型號〗 |
Type |
ZL-S088A |
|
〖功率〗 |
power |
700W |
|
〖電壓〗 |
Voltage |
220V |
|
〖外觀尺寸〗 |
physicaldimension |
860*800*1550MM |
|
〖工作尺寸〗 |
Working size |
480MM長*（320寬*2工作臺）*120高標準型 4800MMlong+(320MMwide*2 worktables)*120MM high standard |
|
〖工作速度〗 |
Working speed |
0.3M/S |
|
〖操作黏度〗 |
Operatingviscosity |
500-6000 CPS |
|
〖重量〗 |
Weight |
105KG |
|
〖適用膠水〗 |
Applicableglue |
萬能膠，白乳膠，熱熔膠（此設備可以加裝熱熔膠） Allpurpose adhesive ,white latex,hot meltadhesive(this equipment can be epuipped with hot melt adhesive) |
|
〖劃膠閥功能〗 |
Gunvalvefunction |
劃膠，涂膠，點膠，噴膠 Gluedrawing,Gluing,dispengsingandspraying |
|
〖出膠量〗 |
Amountofglue |
2MM--10MM |
|
〖膠桶壓力〗 |
Bucketpressure |
0.1-0.6Pa |
|
〖劃膠閥壓力〗 |
Gun valvepressure |
0.4-0.6Pa |
|
〖膠桶容積〗 |
Barrelvolume |
6L |
|
〖系統驅動〗 |
Systemdrive |
日本三菱64點輸入，輸出PLC操作系統+至尚四軸操作系統V8版 Mitsubishi64pointinputandoutput PLC control system+Zhishang four axis controlsystemV8version |
|
〖伺服〗 |
Servos |
杰美康58步進閉環馬達 Jiemeikang58 stepping closed-loop control motor |
|
〖模組〗 |
Module |
中國臺灣尚銀精工導軌 Taiwan Shangyin Seiko guide rail |
|
〖電源〗 |
Powersupply |
明緯電源48V，雙電源 Mingweipowersupply48V,dualpowersupply |
|
〖開關〗 |
Control switch |
原廠家正泰與歐姆龍開關 OriginalmanufacturerChintandOMRONswitch |
|
〖拖鏈線〗 |
Towline |
訊馳高柔拖鏈線，耐折100萬次 Xunchihigh flexible drag chain line with folding resistance of 1 million times |
|
〖劃膠閥〗 |
HotMelt System |
至尚公司品牌，有專利保護 Zhishangbrand ,with patent protection |
|
〖熱熔劃膠閥〗 |
HotMeltGunValve |
至尚公司品牌，有專利保護 Zhishangbrand ,with patent protection |
|
〖設備結構〗 |
Equipmentstructure |
至尚公司設計，專利申請，鋁合金機架，鈑金結構 Zhishang conpany design,patent application ,aluminum alloy frame,sheet metal structure
|
|
設備優勢 Epuipment advantages |
1.此設備可以平面劃膠，內底面劃膠，同時可以編輯多個不同文件。 Thisequipment can be glued on the plane and the inner bottom, and can edit multiple different files at the same time. |
|
2.劃膠嘴，劃膠閥為我司專利產品，設備變形，異形，高低不平，都可以很好的生產。劃膠嘴防撞，防變形。 Gunnozzleandgunvalve are our patented products.The epuipment is deformed ,deformed and uneven,which can be producedwell.Thegunmouthisanti-collisonandantideformation |
|
|
3.適用產品:紙盒，膠盒，木盒，海棉，EVA，珍珠棉等。 Applicableproducts:carton,plastic box,wooden box,spong,EVA,pearl cotton,etc |
|
|
4.操作簡單，系統可記錄200個文件，翻單時只有調出文件即可。 Theoperationis simple.The system can record 200 files.When turning a document,only the file can be called out |
|
|
5.劃膠嘴，終身以舊換新，保修保換。 Thegun nozzle is replaced with the old one for life ,with warranty. |
