〖產品名稱〗 |
productname |

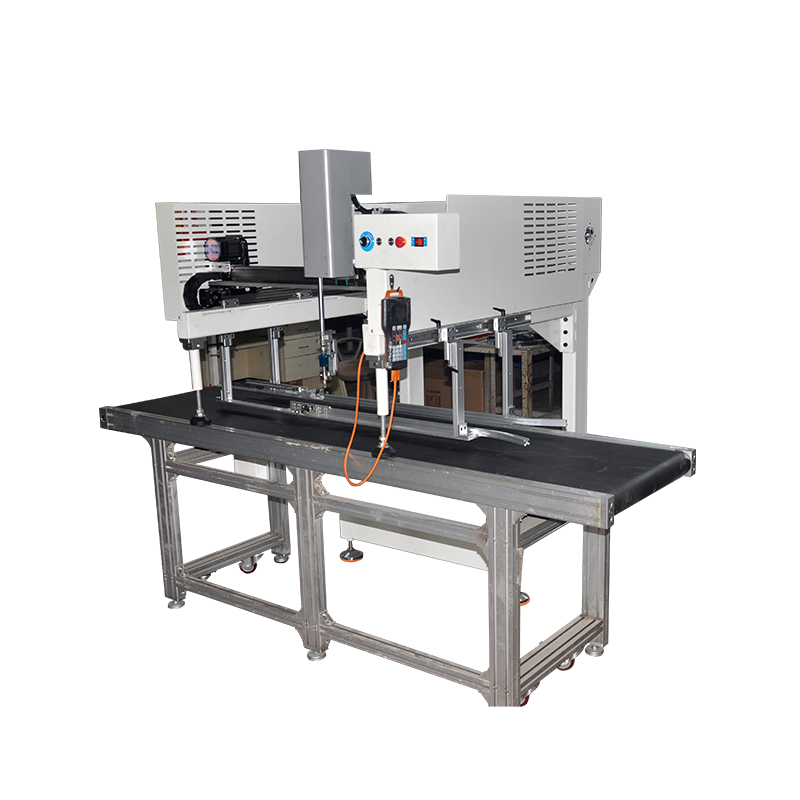

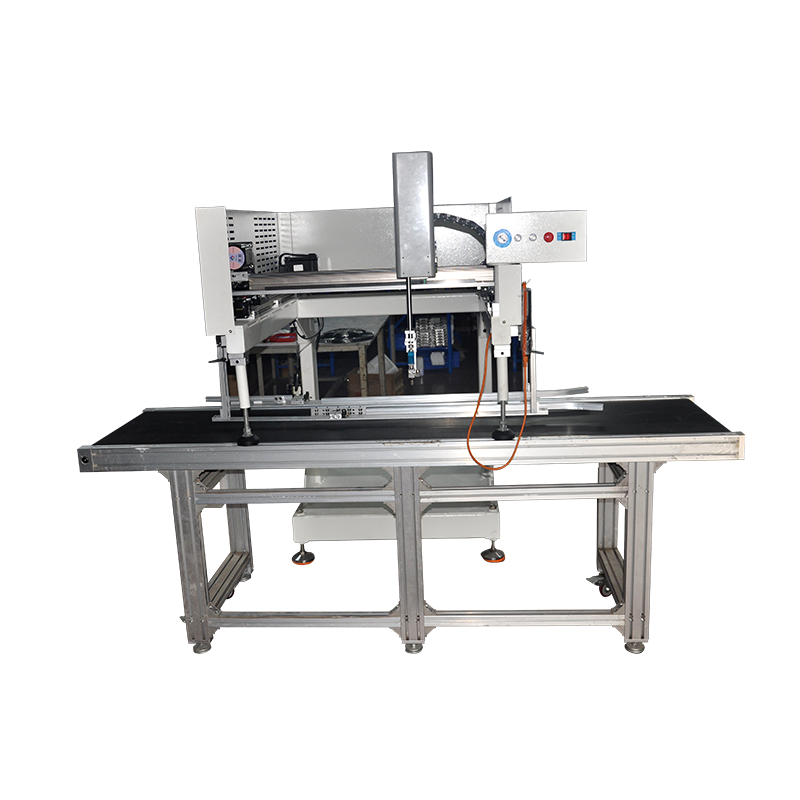

隨線四軸自動劃膠機—熱膠 Four axis automatic glue drawing machine along the line-hotglue |
|
〖型號〗 |
Type |
ZS-088R-4 |
|
〖功率〗 |
power |
3000W（含熱熔桶+熱熔劃膠閥+熱熔管） |
|
〖電壓〗 |
Voltage |
220V |
|
〖外觀尺寸〗 |
physicaldimension |
長1.5*寬0.9*高1.6M Length1.5*width0.9*height1.6m |
|
〖工作尺寸〗 |
Working size |
600*600*130MM標準型 |
|
〖工作速度〗 |
Working speed |
S/0.3M（10-30PCS ） |
|
〖操作黏度〗 |
Operatingviscosity |
1-10000CPS |
|
〖重量〗 |
Weight |
295KG |
|
〖適用膠水〗 |
Applicableglue |
壓敏膠，熱熔膠（可選擇性加裝冷膠噴膠閥） Pressuresensitiveadhesive,hotmeltadhesive(optionalcoldgluespraygun) |
|
〖劃膠閥功能〗 |
Gunvalvefunction |
面劃膠、噴膠、側面劃膠，360度旋轉 Surfacegluing,gluespraying,sidegluing,360 degree rotation |
|
〖出膠量〗 |
Amountofglue |
2MM--10MM |
|
〖膠桶壓力〗 |
Bucketpressure |
0.1-0.6Pa |
|
〖劃膠閥壓力〗 |
Gun valvepressure |
0.4-0.6Pa |
|
〖膠桶容積〗 |
Barrelvolume |
6L |
|
〖系統驅動〗 |
Systemdrive |
日本三菱32點輸入，輸出PLC操控系統+至尚四軸操控系統V8版Mitsubishi32pointinputandoutput PLC control system + Zhishang four axis controlsystemV8version |
|
〖伺服〗 |
Servos |
合川伺服750V，行星減速機 Hechuanservo 750V,planetary reducer |
|
〖模組〗 |
Module |
東莞市邁捷50型高精密模組 Dongguanmaijie50highprecisionmodule |
|
〖導軌〗 |
Guiderail |
中國臺灣尚銀精工導軌 Taiwan ,China Shangyin Seiko guide rail |
|
〖電源〗 |
Powersupply |
明緯電源48V，雙電源 Mingwei powersupply48V,dualpower supply |
|
〖開關〗 |
Control switch |
原廠家正泰與歐姆龍開關 OriginalmanufacturerChintandOMRONswitch |
|
〖拖鏈線〗 |
Towline |
訊馳高柔拖鏈線，耐折100萬次 Xunchihigh flexible drag chain line with folding resistance of 1 million times |
|
〖熱熔系統〗 |
HotMelt System |
至尚公司 Zhishangbrand |
|
〖熱熔劃膠閥〗 |
HotMeltGunValve |
至尚公司品牌，有專利保護 Zhishangbrand ,with patent protection |
|
〖設備結構〗 |
Equipmentstructure |
至尚公司設計，專利申請，焊接，龍門銑Zhishang company design, patent application, welding, gantry milling |
|
設備優勢 Epuipment advantages |
1.設備以懸臂式跨線的工作方式，適用公司任何流水線，可以根據客戶需要加裝流水線。 Theequipment works in a cantilevered cross line mode, which is suitable for any assembly line of the company, and the assemblylinecanbeaddedaccording to the needs of customers. |
|
2.點膠機模塊化,可隨意拆份,組裝,搭配使用.靈活,便捷,更方便現場使用。 Thedispensing machine is modular and can be disassembled at will for assembly and use Flexible, efficient and more convenientforon-siteuse |
|
|
3.侍服馬達，高速模組,PLC程序操控與點膠操控程序,雙系統,智能操控,劃各種圖形, 200個文件記憶功能 Servomotor,high-speedmodule,PLC program control and dispensing control program,dual system intelligent control, drawingvariousgraphicsand200filememory functions |
|
|
4.大小產品能實用,采用360度旋轉噴膠,劃膠,可同時噴劃盒子底部與內襯,可劃盒 子四側邊膠水，膠水位置和大小可調。 Thesize of the product can be practical. It adopts 360 degree rotation to spray and scratch glue. It can spray and scratch thebottomand lining of the box at the same time. It can scratch the glue on the four sides of the box. The position and sizeofthe glue are adjustable. |
|
|
5.如果客戶需求要白膠，熱膠同時工作，此設備可加裝。加裝的劃膠閥，只有一把能劃側面劃膠。 If the customer needs white glue and hot glue to work at the same time, this equipment can be added. Only one gun valve installedcanscratchthesideglue. |
|
|
6.加工產品：書形盒,天地盒,插邊盒，皮殼板,內托，彩盒，卡盒，膠盒，木盒等。 Processingproducts:book box,heaven and earth box,edge inserting box,leather case board inner support,color box, cardbox,plastic box,wooden box,etc.
|
|
〖產品名稱〗 |
productname |
隨線四軸自動劃膠機—熱膠 Four axis automatic glue drawing machine along the line-hotglue |
|
〖型號〗 |
Type |
ZS-088R-4 |
|
〖功率〗 |
power |
3000W（含熱熔桶+熱熔劃膠閥+熱熔管） |
|
〖電壓〗 |
Voltage |
220V |
|
〖外觀尺寸〗 |
physicaldimension |
長1.5*寬0.9*高1.6M Length1.5*width0.9*height1.6m |
|
〖工作尺寸〗 |
Working size |
600*600*130MM標準型 |
|
〖工作速度〗 |
Working speed |
S/0.3M（10-30PCS ） |
|
〖操作黏度〗 |
Operatingviscosity |
1-10000CPS |
|
〖重量〗 |
Weight |
295KG |
|
〖適用膠水〗 |
Applicableglue |
壓敏膠，熱熔膠（可選擇性加裝冷膠噴膠閥） Pressuresensitiveadhesive,hotmeltadhesive(optionalcoldgluespraygun) |
|
〖劃膠閥功能〗 |
Gunvalvefunction |
面劃膠、噴膠、側面劃膠，360度旋轉 Surfacegluing,gluespraying,sidegluing,360 degree rotation |
|
〖出膠量〗 |
Amountofglue |
2MM--10MM |
|
〖膠桶壓力〗 |
Bucketpressure |
0.1-0.6Pa |
|
〖劃膠閥壓力〗 |
Gun valvepressure |
0.4-0.6Pa |
|
〖膠桶容積〗 |
Barrelvolume |
6L |
|
〖系統驅動〗 |
Systemdrive |
日本三菱32點輸入，輸出PLC操控系統+至尚四軸操控系統V8版Mitsubishi32pointinputandoutput PLC control system + Zhishang four axis controlsystemV8version |
|
〖伺服〗 |
Servos |
合川伺服750V，行星減速機 Hechuanservo 750V,planetary reducer |
|
〖模組〗 |
Module |
東莞市邁捷50型高精密模組 Dongguanmaijie50highprecisionmodule |
|
〖導軌〗 |
Guiderail |
中國臺灣尚銀精工導軌 Taiwan ,China Shangyin Seiko guide rail |
|
〖電源〗 |
Powersupply |
明緯電源48V，雙電源 Mingwei powersupply48V,dualpower supply |
|
〖開關〗 |
Control switch |
原廠家正泰與歐姆龍開關 OriginalmanufacturerChintandOMRONswitch |
|
〖拖鏈線〗 |
Towline |
訊馳高柔拖鏈線，耐折100萬次 Xunchihigh flexible drag chain line with folding resistance of 1 million times |
|
〖熱熔系統〗 |
HotMelt System |
至尚公司 Zhishangbrand |
|
〖熱熔劃膠閥〗 |
HotMeltGunValve |
至尚公司品牌，有專利保護 Zhishangbrand ,with patent protection |
|
〖設備結構〗 |
Equipmentstructure |
至尚公司設計，專利申請，焊接，龍門銑Zhishang company design, patent application, welding, gantry milling |
|
設備優勢 Epuipment advantages |
1.設備以懸臂式跨線的工作方式，適用公司任何流水線，可以根據客戶需要加裝流水線。 Theequipment works in a cantilevered cross line mode, which is suitable for any assembly line of the company, and the assemblylinecanbeaddedaccording to the needs of customers. |
|
2.點膠機模塊化,可隨意拆份,組裝,搭配使用.靈活,便捷,更方便現場使用。 Thedispensing machine is modular and can be disassembled at will for assembly and use Flexible, efficient and more convenientforon-siteuse |
|
|
3.侍服馬達，高速模組,PLC程序操控與點膠操控程序,雙系統,智能操控,劃各種圖形, 200個文件記憶功能 Servomotor,high-speedmodule,PLC program control and dispensing control program,dual system intelligent control, drawingvariousgraphicsand200filememory functions |
|
|
4.大小產品能實用,采用360度旋轉噴膠,劃膠,可同時噴劃盒子底部與內襯,可劃盒 子四側邊膠水，膠水位置和大小可調。 Thesize of the product can be practical. It adopts 360 degree rotation to spray and scratch glue. It can spray and scratch thebottomand lining of the box at the same time. It can scratch the glue on the four sides of the box. The position and sizeofthe glue are adjustable. |
|
|
5.如果客戶需求要白膠，熱膠同時工作，此設備可加裝。加裝的劃膠閥，只有一把能劃側面劃膠。 If the customer needs white glue and hot glue to work at the same time, this equipment can be added. Only one gun valve installedcanscratchthesideglue. |
|
|
6.加工產品：書形盒,天地盒,插邊盒，皮殼板,內托，彩盒，卡盒，膠盒，木盒等。 Processingproducts:book box,heaven and earth box,edge inserting box,leather case board inner support,color box, cardbox,plastic box,wooden box,etc.
|
