〖產品名稱〗 |
productname |

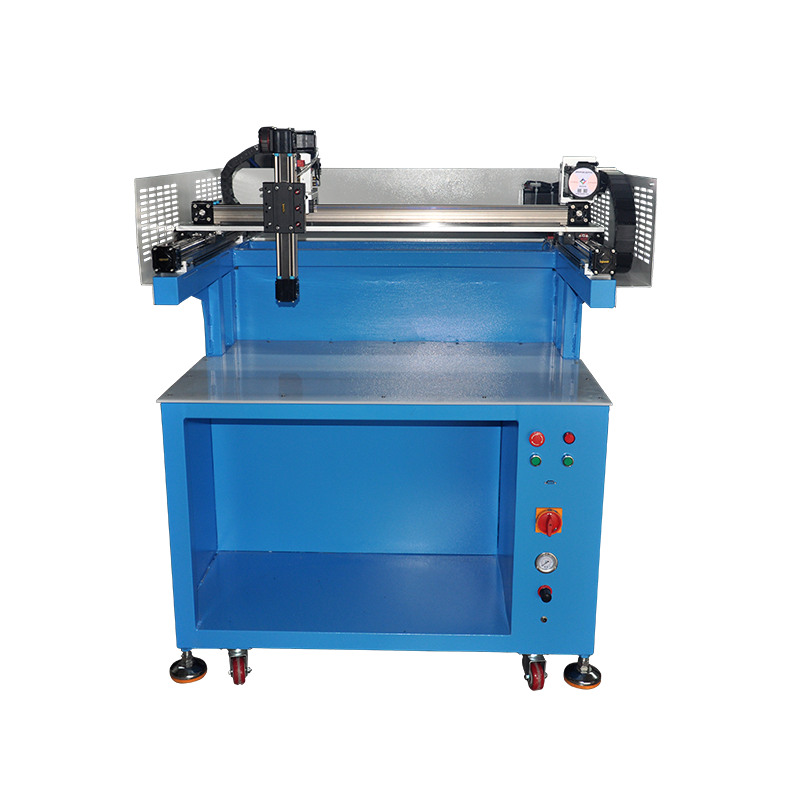

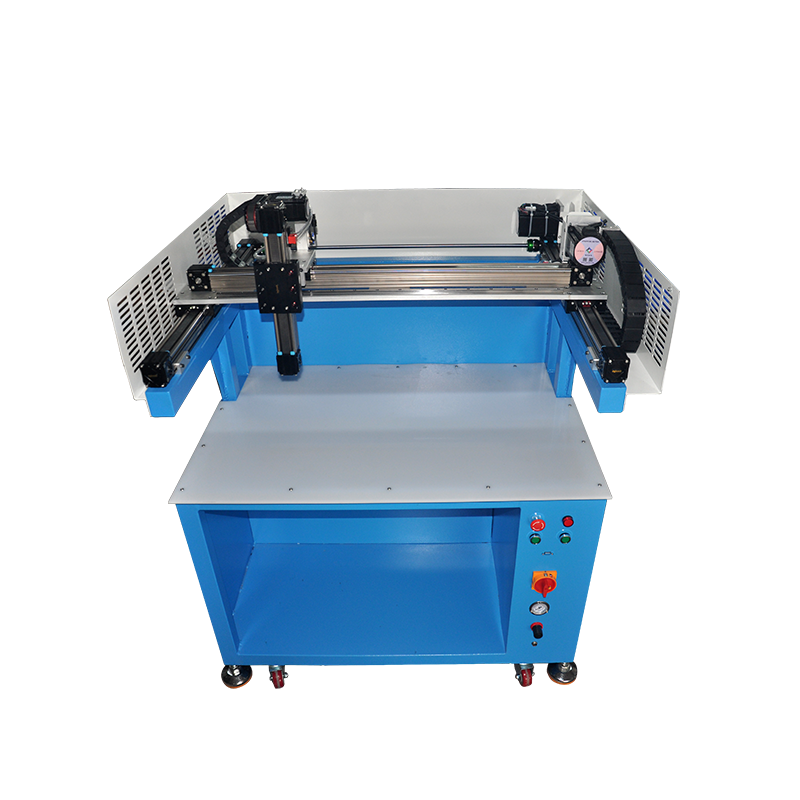

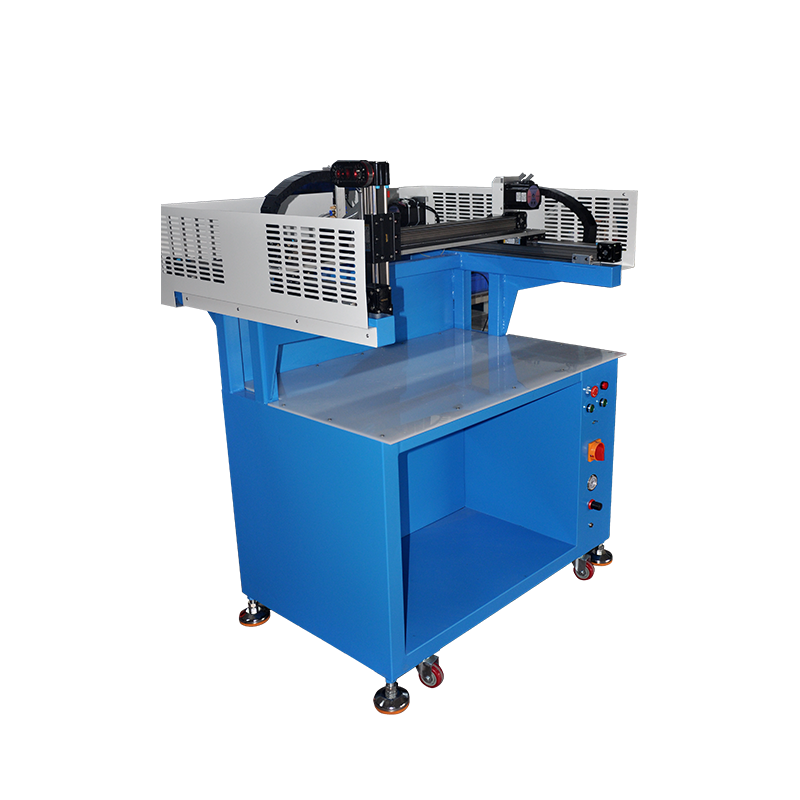

三軸自動劃膠機 Three axis automatic gluing machine |
|
〖型號〗 |
Type |
ZL-S088D |
|
〖功率〗 |
power |
1200W |
|
〖電壓〗 |
Voltage |
220V |
|
〖外觀尺寸〗 |
physicaldimension |
長1200*寬1100*高1600MM Length1200*width1100*height1600mm |
|
〖工作尺寸〗 |
Working size |
長800* 寬600*高150MM Length800*width600*height150mm |
|
〖工作速度〗 |
Working speed |
S/0.35M（10-30PCS ） |
|
〖操作黏度〗 |
Operatingviscosity |
1-10000CPS |
|
〖重量〗 |
Weight |
145KG |
|
〖適用膠水〗 |
Applicableglue |
萬能膠，白乳膠（可以加裝熱熔膠） All purposeadhesive,white latex (hotmeltadhesive can be added) |
|
〖劃膠閥功能〗 |
Gunvalvefunction |
平面劃膠、平面噴膠 Planegluedrawingandplanegluespraying |
|
〖出膠量〗 |
Amountofglue |
2MM--10MM |
|
〖膠桶壓力〗 |
Bucketpressure |
0.1-0.6Pa |
|
〖劃膠閥壓力〗 |
Gun valvepressure |
0.4-0.6Pa |
|
〖膠桶容積〗 |
Barrelvolume |
6L（根據客戶需要可以選配，加大桶) 6L (optional according to customers' needs,with large barrels added) |
|
〖系統驅動〗 |
Systemdrive |
輸出PLC操作系統+至尚四軸操作系統V8版 OutputPLCcontrolsystem+Zhishangfour axis control system V8 version |
|
〖伺服〗 |
Servos |
伺服馬達 Servomotor |
|
〖模組〗 |
Module |
東莞市邁捷50型高精密模組 Dongguan maijie 50 highprecisionmodule |
|
〖導軌〗 |
Guiderail |
中國臺灣尚銀精工導軌 Taiwan,China Shangyin Seiko guide rail |
|
〖電源〗 |
Powersupply |
明緯電源48V，雙電源 Mingwei powersupply48V,dualpower supply |
|
〖開關〗 |
Control switch |
原廠家正泰與歐姆龍開關 OriginalmanufacturerChintandOMRONswitch |
|
〖拖鏈線〗 |
Towline |
訊馳高柔拖鏈線，耐折100萬次 Xunchi high flexible drag chain line with folding resistance of 1 million times |
|
〖劃膠閥配置〗 |
HotMelt System |
至尚公司劃膠閥 SpecialgunvalveofZhishangcompany |
|
〖設備結構〗 |
Equipmentstructure |
至尚公司設計，專利申請，焊接，龍門銑Zhishang company design, patent application, welding, gantry milling |
|
設備優勢 Epuipment advantages |
1. 此設備多用途，可以噴膠，可以劃膠。生產過程中只要換個頭即可。 Thisequipment is multi-purpose and can spray or scratch glue. Just change the head in the production process. |
|
2.三軸機器，只能平面劃膠，平面噴膠，劃白乳膠，萬能膠等膠水。 Threeaxis machine can only draw glue on the plane, spray glue on the plane, draw white latex, universal glue and other |
|
|
3.適用于皮盒，紙盒，木盒，奢侈品盒，劃膠均勻。 Itis applicable to leather boxes, cartons, wooden boxes and high-grade luxury boxes, and the glue is evenly scratched. |
|
|
4.此設備機架結實，采用高速伺服馬達，針對比較高的產品，機臺底坐重，穩定， 速度快。 Theequipmentframe is solid and adopts high-speed servo motor. For higher products, the machine bottom is heavy, stableandfast. |
|
|
5.適用大尺寸皮殼，內盒，內托，劃膠面積大，拿取方便，節省人員，降低員工熟練程度，提高效率。 Itis suitable for large-size leather shell, inner box and inner bracket. It has large rubber cutting area, easy to take, saves personnel,reduces staff proficiency and improves efficiency.
|
|
